Relationship and Comparison of Pyridine-Based and Imidazoline-Based Corrosion Inhibitors

2025-05-20

Pyridine-based and imidazoline-based corrosion inhibitors are both commonly used organic corrosion inhibitors in Oilfield Chemicals, widely applied to prevent metal corrosion in acidic environments (e.g., oil and gas systems containing H₂S or CO₂). They belong to the family of nitrogen-containing heterocyclic compounds and share similar chemical properties, such as forming protective films on metal surfaces through coordination via the lone pair electrons of nitrogen atoms. However, their structures, performance, and application scenarios differ significantly. Below is a detailed analysis of their relationship and a comparison.

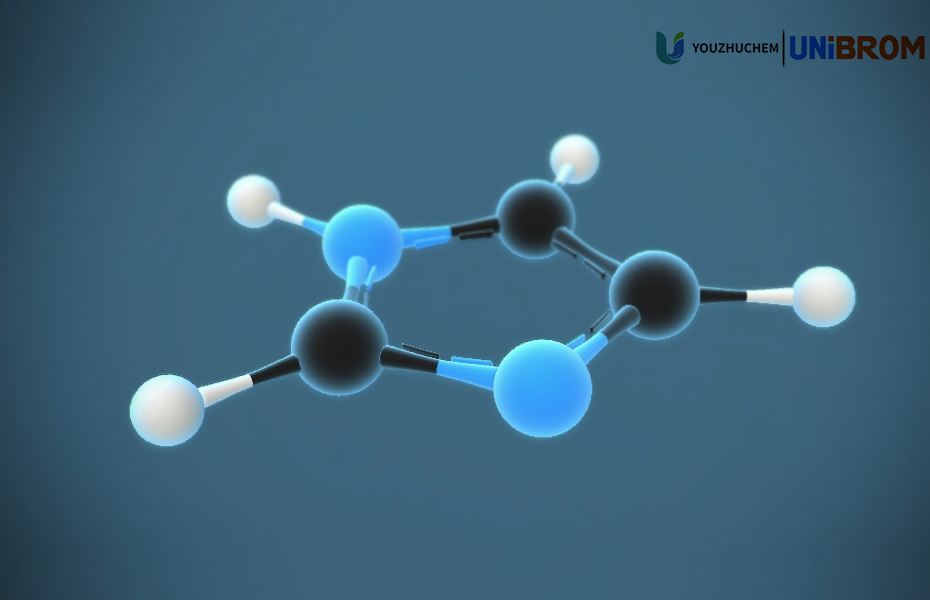

124 imidazoline ring (C₃H₄N₂) Corrosion inhibitor

I. Relationship

1. Chemical Structure

Pyridine-Based:

Structure: Six-membered aromatic ring with one nitrogen atom, highly conjugated and stable.

Modification: Performance can be adjusted by introducing substituents such as alkyl, hydroxyl, or halogen groups on the pyridine ring.

Examples: Pyridine, methylpyridine (pyridine derivatives).

Imidazoline-Based:

Structure: Five-membered non-aromatic ring with two nitrogen atoms, one often linked to a long alkyl chain, increasing hydrophobicity.

Modification: Alkyl chain length and substituents (e.g., hydroxyethyl) can significantly alter solubility and adsorption capacity.

Examples: Oleyl imidazoline, hydroxyethyl imidazoline.

Comparison Point:

Pyridine’s aromaticity lends it greater chemical stability, while imidazoline’s alkyl chain enhances surface activity, forming a thicker hydrophobic layer.

2. Corrosion Inhibition Performance

Pyridine-Based:

In acidic environments, pyridine adsorbs onto metal surfaces via nitrogen lone pair coordination, but its small molecular size limits surface coverage, potentially reducing efficiency compared to long-chain molecules.

It exhibits good resistance to high temperatures and strong acidic conditions (e.g., concentrated HCl or H₂SO₄) due to the stability of its aromatic ring.

Limitation: Single pyridine molecules have weaker adsorption; derivatives (e.g., quaternary ammonium pyridines) are needed to improve performance.

Imidazoline-Based:

With two nitrogen atoms and a long alkyl chain, imidazolines offer stronger adsorption and greater surface coverage, forming a dense protective film, typically resulting in higher inhibition efficiency.

They perform exceptionally well in moderate to low temperatures and acidic conditions (e.g., oilfield acidizing fluids), but may degrade or fail at high temperatures.

Advantage: The long-chain structure provides dual functionality as both a corrosion inhibitor and a surfactant.

Comparison Point:
Imidazolines generally outperform pyridines in conventional acidic conditions, but pyridines are more stable in high-temperature or extreme environments.

15 Advanced Additives for Oil and Gas Gathering and Transferring (2)

3. Application Scenarios

Pyridine-Based:

Suitable for high-temperature, highly acidic environments, or scenarios requiring chemical stability, such as deep-well acidizing or high-temperature pipeline protection.

Often used in formulating high-temperature-resistant inhibitors or as a component in composite inhibitors.

Imidazoline-Based:

More suited to moderate-to-low-temperature environments with water or oil-gas mixtures, such as oilfield pipelines, storage tanks, and drilling fluid systems.

Due to their hydrophobicity, they are commonly used in oil-dominated systems.

Comparison Point:
Pyridines excel in high-temperature extreme conditions, while imidazolines are more widely applied in routine oilfield operations.

4. Solubility and Environmental Adaptability

Pyridine-Based:

Good water solubility but weaker hydrophobicity; modification (e.g., quaternization) is needed to adapt to oily environments.

Highly adaptable to acidic conditions but less effective in alkaline settings.

Imidazoline-Based:

Adjustable solubility in both aqueous and oily phases by varying alkyl chain length, offering amphiphilic properties (hydrophilic and hydrophobic).

Most effective in acidic conditions, with reduced adsorption in alkaline environments.

Comparison Point:
Imidazolines’ amphiphilicity provides broader applicability, while pyridines require modification to enhance environmental adaptability.

5. Cost and Environmental Impact

Pyridine-Based:

Relatively simple synthesis and lower cost, but pyridine itself is toxic, making it less environmentally friendly.

Imidazoline-Based:

Synthesis involves adding alkyl chains, slightly increasing costs, but they can be derived from bio-based materials (e.g., fatty acids), offering greater environmental potential.

Comparison Point:
Pyridines are cost-effective but less eco-friendly, while imidazolines are costlier but align better with green chemistry trends.

III. Comparative Summary Table

Property

Pyridine-Based Inhibitors

Imidazoline-Based Inhibitors

Structure

Six-membered aromatic ring, single N

Five-membered non-aromatic ring, dual N + alkyl chain

Inhibition Efficiency

Moderate, requires modification

High, large coverage area

Optimal Scenario

High temperature, high acidity

Moderate-to-low temperature, oil-water mix

Adsorption Mechanism

Nitrogen coordination, chemical adsorption

Dual N coordination + hydrophobic layer, chemical + physical adsorption

Solubility

Water-soluble, weak hydrophobicity

Amphiphilic, adjustable

Stability

Stable at high temperatures

Stable at moderate-to-low temperatures, decomposes at high heat

Cost & Environmental Impact

Low cost, higher toxicity

Higher cost, greater eco-potential

Pyridine-based and imidazoline-based corrosion inhibitors are both nitrogen-containing heterocycles that inhibit corrosion via nitrogen coordination, sharing some functional overlap. However, pyridines, with their aromaticity and stability, are better suited for high-temperature extreme environments, while imidazolines, with their dual nitrogen structure and hydrophobic chains, offer superior efficiency and adaptability in conventional oilfield acidic conditions. The choice between them depends on specific operating conditions (e.g., temperature, pH, media properties) and economic considerations, and they may even be combined in formulations to optimize performance.
