API steel grades for tubing and casing used in lab testing on Corrosion Inhibitor
2025-01-20

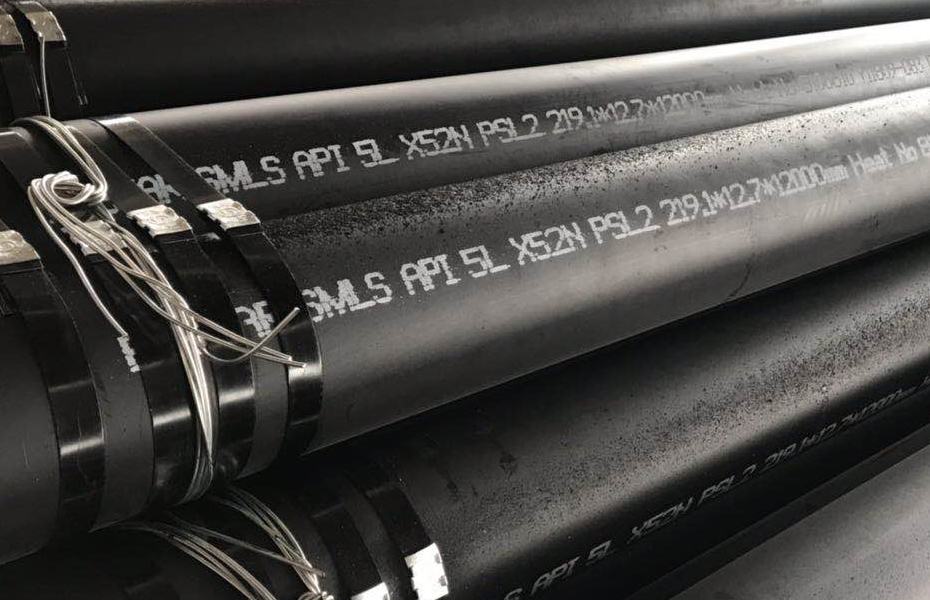

1. API 5L:
▷▶Grade B:
This is a common grade for pipelines, offering basic strength and corrosion resistance. It's often used in testing inhibitors for general pipeline applications.
▷▶Grade X42, X52, X60, X65, X70:
These grades provide increasing tensile strength and are used to test how inhibitors perform under higher stress conditions or with different pipeline thicknesses. They are particularly important for high-pressure gas and oil pipelines.

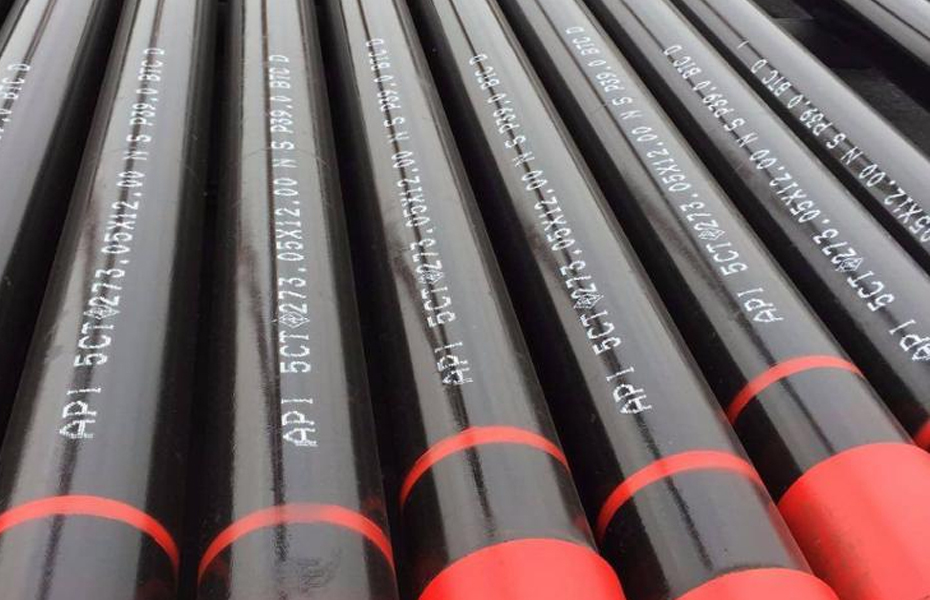

2. API 5CT (Casing and Tubing):
▷▶Grade J55: A common grade for tubing and casing, used for testing inhibitors in environments where moderate strength and corrosion resistance are needed.
▷▶Grade K55: Similar to J55 but with slightly different mechanical properties, often used in similar applications.
▷▶Grade N80: Offers higher strength than J55 or K55, useful for testing under conditions of greater mechanical stress or in corrosive environments.
▷▶Grade L80: Contains 1% chromium, providing better corrosion resistance, particularly used where sweet (CO₂) corrosion might be an issue.
▷▶Grade P110: High strength grade used for deep wells where both high pressure and corrosive environments are anticipated.
▷▶Grade C90, T95: These are high-strength, corrosion-resistant grades, often used in sour service environments where hydrogen sulfide (H₂S) is present.

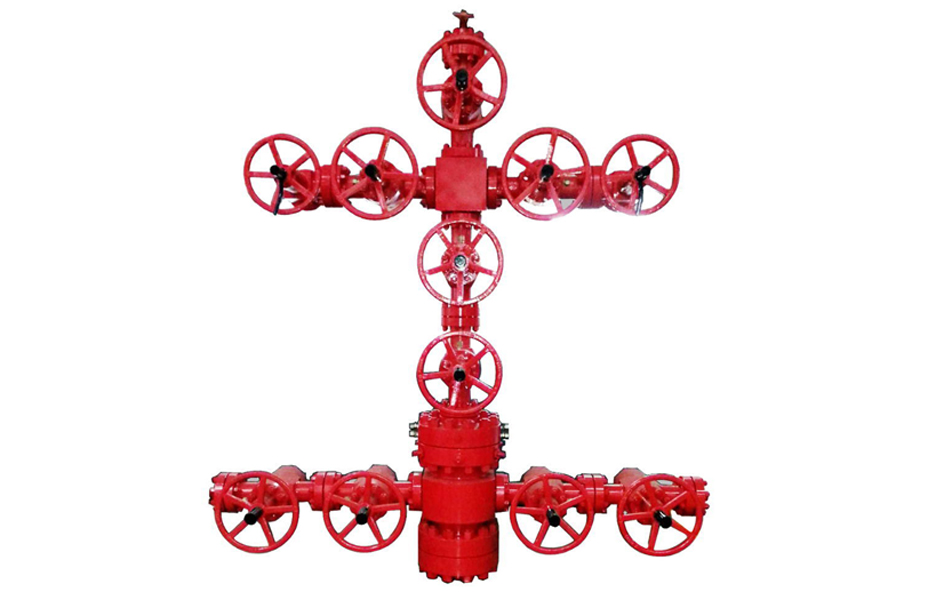

3. API 6A (Wellhead and Christmas Tree Equipment):
▷▶Materials like 4130 or 4140 might be specified under API 6A, though these are more commonly associated with ASTM or SAE standards.
When these steels are used, they are selected for their combination of strength, toughness, and corrosion resistance in wellhead applications.

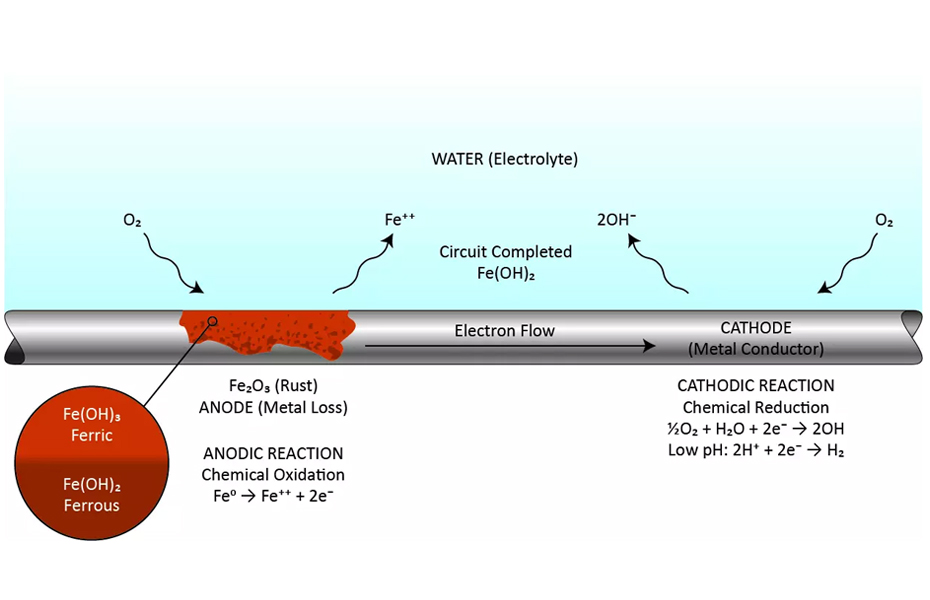

Testing Considerations:
▷▶Environment Simulation: The choice of steel is matched with the environment being simulated, whether it's sweet (CO₂) or sour (H₂S) conditions, high chloride content, or varying temperatures and pressures. ▷▶Corrosion Types: Different steels help test for specific types of corrosion like pitting, uniform corrosion, stress corrosion cracking, or sulfide stress cracking.
▷▶Inhibitor Compatibility: Testing can also involve checking if the inhibitor might cause any adverse reactions or issues with the steel surface, like inhibitor-induced pitting or galvanic corrosion.
▷▶Static vs. Dynamic Testing: API grade steels are used in both static (immersion tests) and dynamic conditions (like flow loops or rotating cylinder electrodes) to mimic the operational conditions of oil and gas equipment.
▷▶Inhibitor Compatibility: Testing can also involve checking if the inhibitor might cause any adverse reactions or issues with the steel surface, like inhibitor-induced pitting or galvanic corrosion.
▷▶Static vs. Dynamic Testing: API grade steels are used in both static (immersion tests) and dynamic conditions (like flow loops or rotating cylinder electrodes) to mimic the operational conditions of oil and gas equipment.

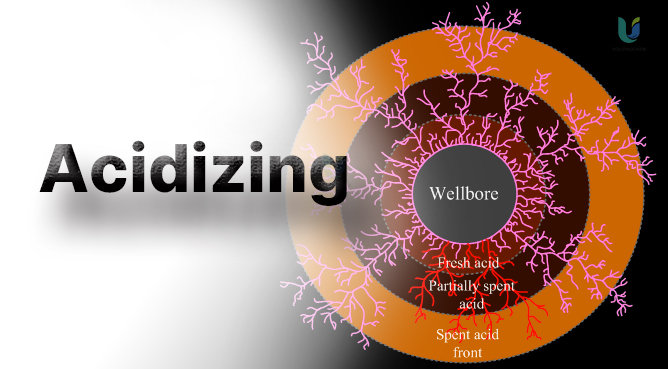

1. Acidizing
Acidizing involves injecting acids into the well bore to dissolve limestone, dolomite, and other acid-soluble formations to enhance well productivity. The inhibitors used in this process must be effective in highly acidic environments:
▷▶Amine-Based Inhibitors: These include compounds like quaternary amines or imidazolines, which are effective in preventing acid corrosion on steel surfaces. They form a protective layer on the metal.
▷▶Acetylenic Alcohols: Often used in combination with other inhibitors, they are particularly good at forming a protective film in acidic conditions.
▷▶Surfactant-Based Inhibitors: These can be used to enhance the adsorption of inhibitors onto the metal surface.
2. Sewage (Produced Water Treatment)
Sewage in oil and gas refers to produced water, which can be highly corrosive due to its content of salts, organic acids, and sometimes hydrogen sulfide:
▷▶Phosphate Esters: These are used for their ability to form stable films in water, especially under conditions where oxygen might be present.
▷▶Phosphate Esters: These are used for their ability to form stable films in water, especially under conditions where oxygen might be present.
▷▶Thioglycolic Acid Derivatives: Effective against sulfide-related corrosion, these inhibitors can react with H₂S to form less harmful compounds.
▷▶Imidazolines: Again, these are versatile and can be effective in the complex mixture of produced water, providing both filming and passivation effects..
3. Transportation (Pipelines)
Transportation involves moving oil or gas through pipelines, where inhibitors are crucial to prevent internal corrosion:
▷▶Filming Amines: These form a protective layer on the metal surface, reducing the direct contact between corrosive elements in the fluid and the pipe wall. Examples include fatty amines and their derivatives.
▷▶Quaternary Ammonium Compounds: Effective in both water and hydrocarbon environments, they can be used in multiphase flow scenarios.
▷▶Phosphonates: Used for scale and corrosion inhibition in pipelines, especially where water content is significant.

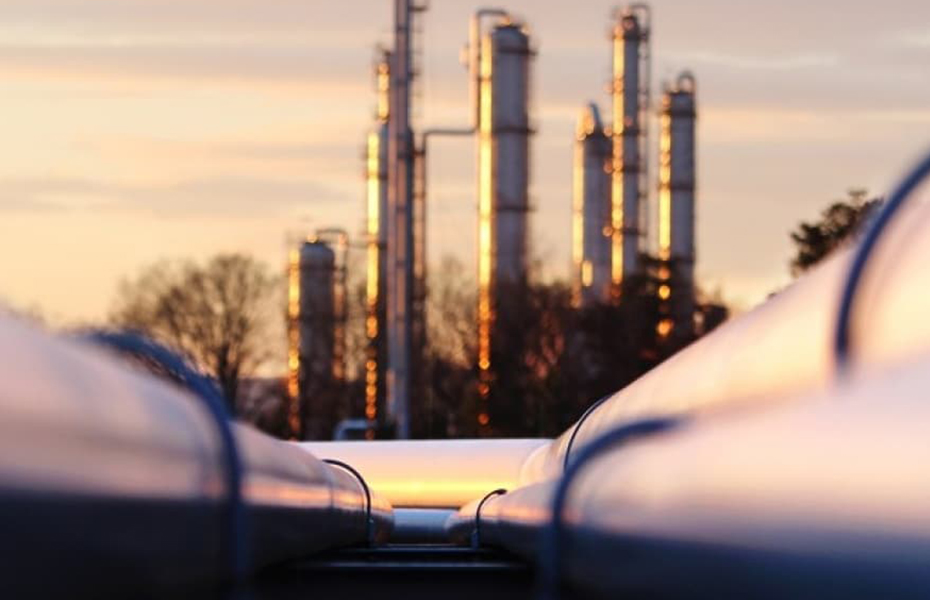

4. Refinery
In the refinery environment, corrosion inhibitors must handle a wide range of conditions, including high temperatures, pressures, and different chemical compositions:
▷▶Neutralizing Amines: These are used to neutralize acids formed during refining processes, particularly in overhead systems of crude units.
▷▶Sulfur-Based Inhibitors: Such as thiazoles or thiadiazoles, which are effective in high-temperature environments where sulfur compounds might be present.
▷▶Phosphate Esters: Also used here for their versatility in forming protective films under varying conditions.
▷▶Benzotriazoles: Often employed for copper and its alloys in refinery settings to prevent corrosion in the presence of aggressive chemicals.
4. Refinery
General Considerations:
▷▶Synergistic Inhibitors: Often, inhibitors are used in combinations for enhanced performance, where one type might improve the effectiveness of another.
▷▶Environmental and Health Considerations: Modern inhibitors are increasingly formulated to be less toxic and more biodegradable to comply with environmental regulations.
▷▶Compatibility: Inhibitors must be compatible with other chemicals used in the process, like biocides, scale inhibitors, and demulsifiers.
Each type of inhibitor is selected based on the specific chemical and physical conditions of the application, ensuring both the protection of equipment and the integrity of the process.
Casing and tubing for oil and gas wells are frequently made of steel alloys. Many corrosive gases, organic acids, salts, and other contaminants are present in the fluids of oil and gas wells, which hurt their productivity, efficiency, and continuous production. The common corrosive species include carbon dioxide (CO2), hydrogen sulfide (H2S), water (H2O), organic acids (HCOOH, CH3COOH etc.) and salts (NaCl, CaCl2, MgCl2, NH4Cl etc.) that can cause the corrosion of metals at any stage of production, purification, storage and transportation processes.
Acidizing corrosion inhibitors must be able to mitigate corrosion in both low carbon alloy steels and high chrome steels, be stable in high acid concentrations and under high reservoir temperatures.
YouzhuCHEM's(www.youzhuchem.com) range of corrosion inhibitors, exhibits excellent inhibition on various metal types, under different temperature and in varying acid concentrations. Additionally, in less severe conditions (e.g. lower acid concentration and/or lower temperatures) the CIs（Corossion Inhibitors） can also be added directly to corrosive treating fluids to protect equipment.
