    Lubricant: Penetration Rate Enhancer
    WBM Additives
    Ester-based lubricant (EBL).png

    Lubricant: Penetration Rate Enhancer

    Applied in Mide East,  ROP enhancer UBDrill-144 EBL is a naturally-occurring, ester-based lubricant, The formulations of Polymerised fatty amides with fatty esters make it a Environmentally friendly and biodegradable ROP enhancer. It has passed the ASTM standard. Aim to Increases ROP and Reduces torque and drag, but as the Downhole conditions varies, we suggest you contact YouzhuCHEM to get technical support and guidance to ensure a best result from our ROP enhancers.

    • Application Drilling: Reduces torque and drag issues
    • Experience Mid-East...
    • Feature Non-toxic to humans or the surrounding environment
    Contact us Download
    ROP enhancer banner

    What we need to formulate your ROP enhancer?

    1.  Fluid Formulations/Drilling Mud System.
    2. Operation conditions:temperature/pressure.
    3. Technical requirements.
    4. Test method.

    Fluid formulations? Water-based? Oil-based? (To confirm the following: water-soluble/oil-soluble, SG/viscosity — high-density drilling fluids require high viscosity to match flowability and sand-carrying capacity — and whether there are any incompatible materials to prevent foiling/emulsification), along with information such as fresh/salty water, pH value, high calcium/magnesium concentration, etc.

    Temperature/pressure? Is high-temperature stability required? For example, at what temperature, with how much additive, and over what period of time is a specific reduction in torque expected?

    High-salinity environments? High-salinity environments may cause salting-out, demulsification, or competitive adsorption effects, which can impact the rheology and filtration properties of the drilling fluid. 【Therefore, ROP enhancers generally contain functional groups capable of forming strong chemical adsorption or coordination bonds with metal surfaces.】

    Pilot Testing Is Recommended.

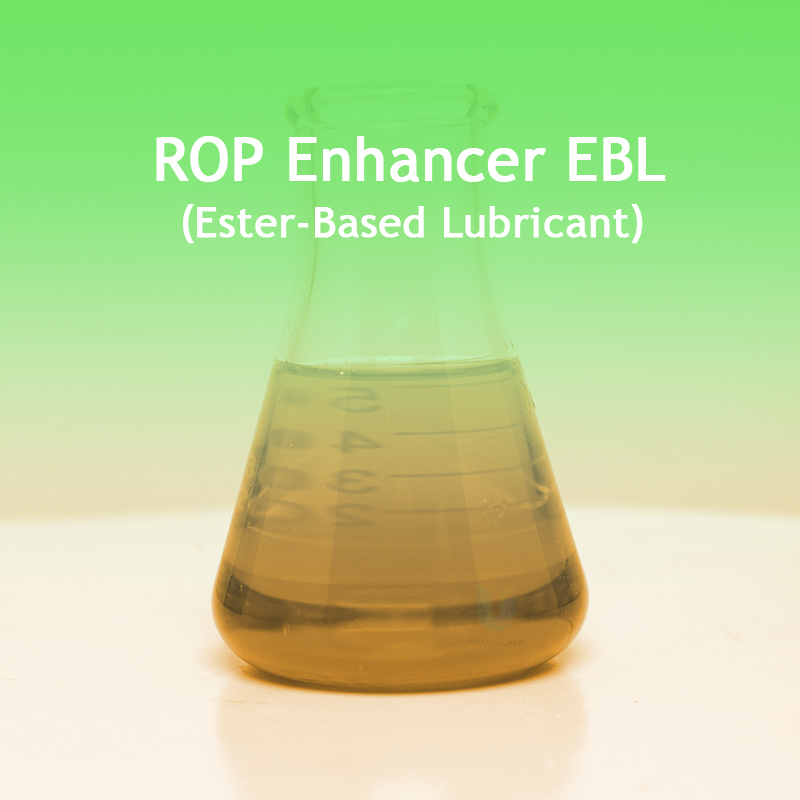

    Product introductionROP Enhancer EBL

    ＞  UBDrill-144 EBL is a naturally-occurring, ester-based lubricant derived from natural fats and oils.
    ＞  It is non-toxic to humans or the surrounding environment.
    ＞  This product has a small impact on the rheological properties of drilling fluid, and property of environmentally friendly performance.


    Technical Index

    Properties

    Specification

    Appearance

    Light-Yellow liquid

    Density，g/cm3@20℃

    0.9-1.0

    Kinematic viscosity @ 40℃(cst)

    100Max

    Pour Point，℃

    ＜-20

    Flash Point（COC），℃

    200Min

    Freshwater system torque reduction percentage (1%v/v), %

    85Min

    Seawater system torque reduction percentage (1%v/v), %

    80Min

    This drilling Mud Lubricant has been Ordered by Aramco.Proven to be the alternative for Radiagreen EBL. It has passed the ASTM standard. Aim to Increases ROP and Reduces torque and drag, but as the Downhole conditions varies, we suggest you contact YouzhuCHEM to get technical support and guidance to ensure a best result from our ROP enhancers. For more and MSDS documents, send us message please.

    Applications/Functions

    drilling bit
    ■ Shale drilling
    ■ Offshore and onshore

    Advantages

    >    Reduces torque and drag issues by providing lubricity to water-based drilling operations without compromising or damaging production zones.
    >    Readily dispersible in any water-based drilling fluid.
    >    Proven results in reducing friction factors while drilling open hole.
    >    Helps to prevent bit-balling and differentially stuck pipe; will have no negative effects on the fluid rheology or filtration properties.
    >    In most cases, will improve the overall API and HTHP fluid loss behaviors of the fluid.
    >    Avoid use in high pH environments.
    >    Initially 0.5-2.0% by volume of UBDrill-144 EBL should be added directly into the mud. The product should be continually added or injected into the mud when the bit is drilling. Freshwater system recommended dosage is1%, seawater system recommended dosage is 1.5%.

    Recommended Handling

    All personnel handling this material must handle it as an industrial chemical, wearing protective equipment and observing the precautions as described in the Material Safety Data Sheet.



    Packaging and Storage

    175kg drum/4 drums/pallet. Store in dry, well-ventilated area. Keep container closed. Keep away from heat, sparks and flames. Store away from incompatibles.
